Motorola MCC 7500E IP Dispatch Console

Motorola MCC7500E

Better manage the flow of critical information and be the pipeline of intelligence to those who need it most with the MCC 7500E IP Dispatch Console.

The MCC 7500E leverages the ultra-small form factor workstation, making deployment simple and easy across dispatch centers where space is at a premium. The MCC 7500E adds support for dual Ethernet connections to minimize failures of LAN switches affecting multiple dispatch positions. The MCC 7500E offers the Enhanced Integrated IRR, providing dispatchers with the ability to access more recorded call audio and metadata.

Motorola MCC 7500E Features

Take It With You
The MCC 7500E IP Dispatch Console provides a full console interface experience anywhere inside or outside of your radio network. It can operate as a permanent, backup or mobile solution, with full console functionality. Whether for a planned event or immediate emergency response, command a wealth of information for high-impact results. Connect to responders with voice, Talkgroup Text Message and tone communication on ASTRO® 25 trunked and conventional systems.

Physical Space Evolution
The MCC 7500E IP Dispatch Console platform utilizes the HP Z2 Mini workstation and the optional Audio Interface Module (AIM). The ultra-small form factor console platform occupies 165 cubic inches of physical space, an overall 90% reduction from previous offerings. The physical space evolution is perfectly suited for cramped command centers that are looking to have best-in-class dispatching capabilities without all the extra weight.

Flexible Peripheral Options
The MCC 7500E IP Dispatch Console can be deployed with or without the Audio Interface Module (AIM). When deployed without the AIM, you can use Commercial Off The Shelf (COTS) equipment such as speakers, microphones, headset and footswitch. Any of these peripherals can be connected to the MCC 7500E IP Dispatch Console via standard USB ports.

High Availability Dispatch Console
The optional redundant ETHERNET connection protects against the loss of multiple dispatch positions due to a LAN switch failure. The MCC 7500E automatically detects the failure and initiates a seamless switchover. No need to perform manual intervention, allowing dispatchers to remain focused on the task at hand. This feature ensures no interruption in the dispatching operations.

Enhanced Dispatch Console Telephony Capability
The MCC 7500E IP Dispatch Console provides an optional console telephony capability seamlessly built within the console, making management of radio and telephony communications easy and simple. The dispatcher can quickly and easily interface communications between radio users and traditional phone lines. Quickly patch a telephone user into a radio talkgroup or put them on hold directly within the dispatch console.

Connect to More Information and Better Inform Those in the Field
Seamlessly integrate the MCC 7500E console with the following applications and more to streamline operations and provide better support to the field

  • Advanced Messaging Solution
  • PremierOne CAD
  • MotoMapping
  • Motorola Certified Logging Recorders
  • Other Third Party Applications Via API

Intelligence to Those Who Need it - How They Need it
Effectively coordinate a response with high-quality voice and tone communication over your ASTRO 25 trunked and conventional systems. When voice is not an option, send critical incident information via Talkgroup Text Message to make sure those in the field are always informed.

Because Ease of Use Makes for More Effective Support

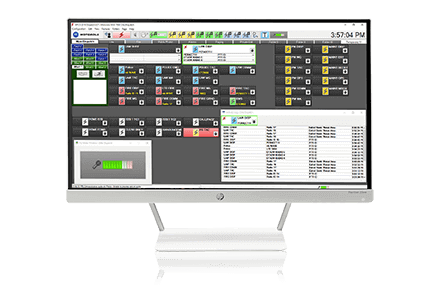

Based on a modernized, intuitive approach to the legacy Gold Elite graphical user interface (GUI), the MCC 7500E console GUI minimizes training time and is easily adoptable by new and veteran dispatchers alike. Purposed-design workflows, critical resource information displays and contextual right-click menus make operation feel natural and increase efficiency.

Tailored to Your Agency and Even Individual Dispatcher Needs
The MCC 7500E console conforms to your organization’s operations. Maintain the look and functionality that you have become accustomed to with flexible window sizing and placement, resource coloring and customizable icons.

Ensure the Right Information Always Gets Through
A single critical operational detail has the potential to change the trajectory of your response within a single moment. To never miss a detail, rely on our smart voice prioritization and intelligent audio routing capabilities at your dispatch positions.

Built on the ASTRO 25 Foundation of Security and Reliability
The success of your operations relies on the communication of often-times sensitive information. End-to-end encryption protects information in transit and agency partitioning goes a step further to help maintain autonomy of communications within a single system. Furthermore, reliability features like link and resource polling, coupled with the inherent reliability of your ASTRO 25 system, ensures that critical information can always be communicated to the field.
